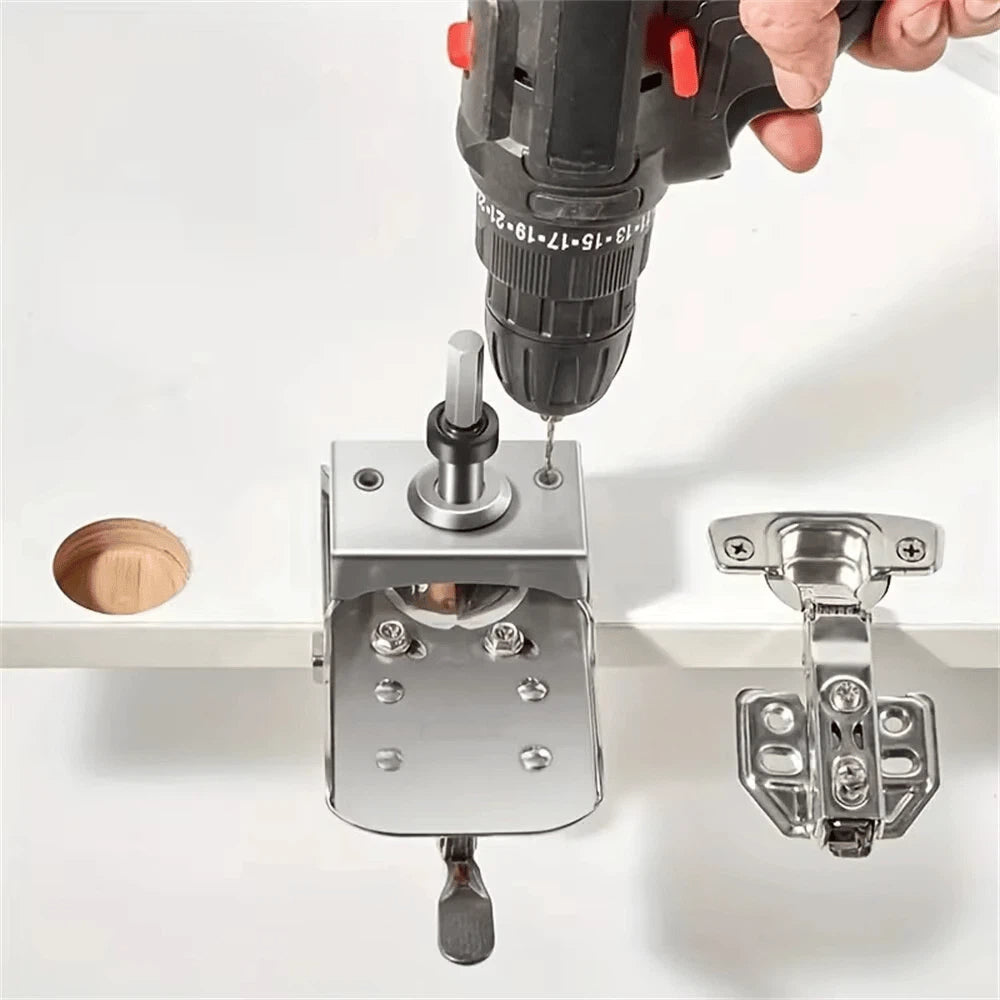

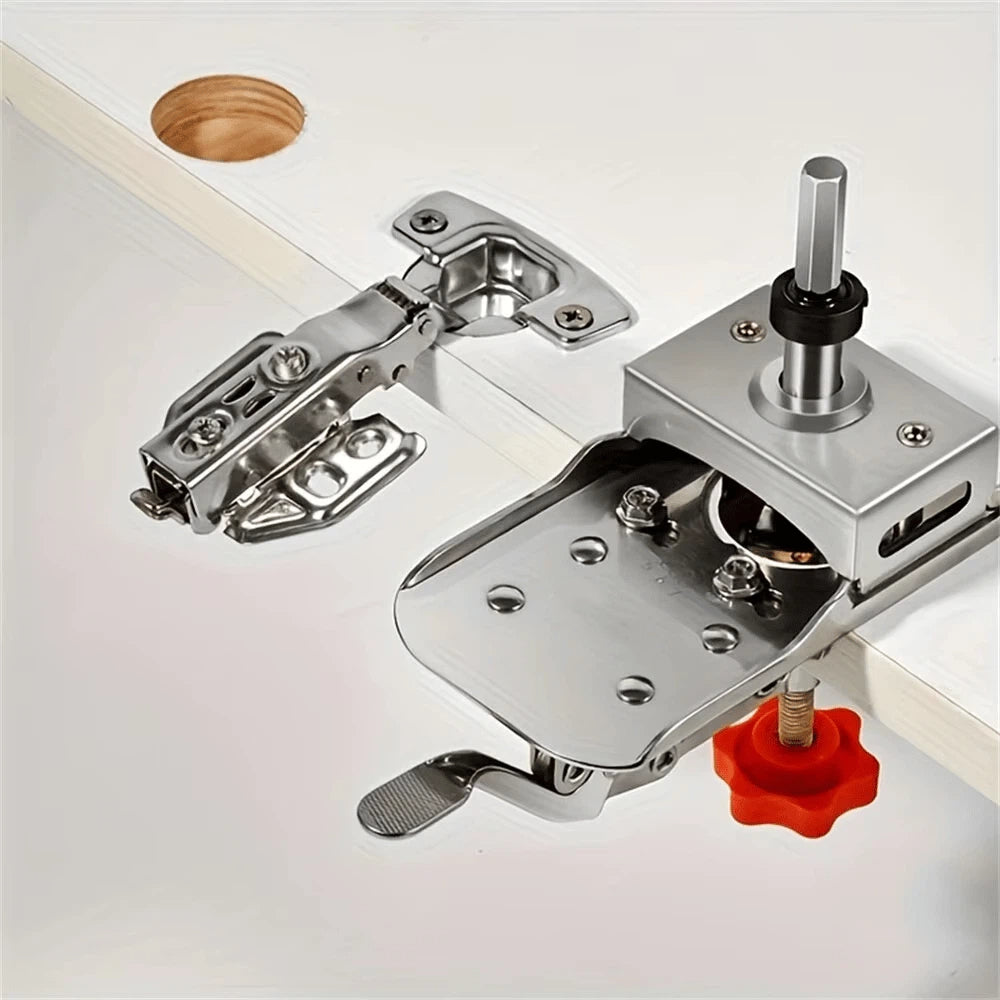

35mm Concealed Door Hinge Jig – Locking Cabinet Hinge Tool with Drilling Locator

35mm Concealed Door Hinge Jig – Locking Cabinet Hinge Tool with Drilling Locator

Regular price $34.99 USD
Regular price $58.99 USD Sale price $34.99 USD
Sale Sold out
Style
Quantity

🚢Shipping>>We'll arrange the fastest shipping for you. Free Shipping On Orders Over $39.9
🎁Don't forget to buy some for your family or friends as it's an unique gift idea.❤️
😊Returns>> Easy and fast returns by professional customer service team.
⏰Fast Handling>> Priority is given to delivery after payment.
🏆Safety>>SSL Certificates For 100% Security!

Say Goodbye to Complicated Hinges: Simple, Accurate, Fast!Effortless Cabinet Installation – Get the Precision You Need!

Optimization 1: Cloud-Shaped Buckle Backer

  • 3-7mm Margin, One Stroke in Place
  • Utilizes a laser scale at the back to adjust the backer distance, eliminating manual alignment.
  • Five gear adjustments provide greater convenience, with higher fault tolerance for worry-free usage.

Optimization 2: Widened and Thickened Rubber Head

  • High Friction Force, Not Easily Displaced by External Forces
  • Compared to the first generation, it features a larger size and wider contact surface, providing greater friction!
  • When drilling with an electric drill, it is less likely to shift due to external forces, while the thickened pad minimizes surface damage.

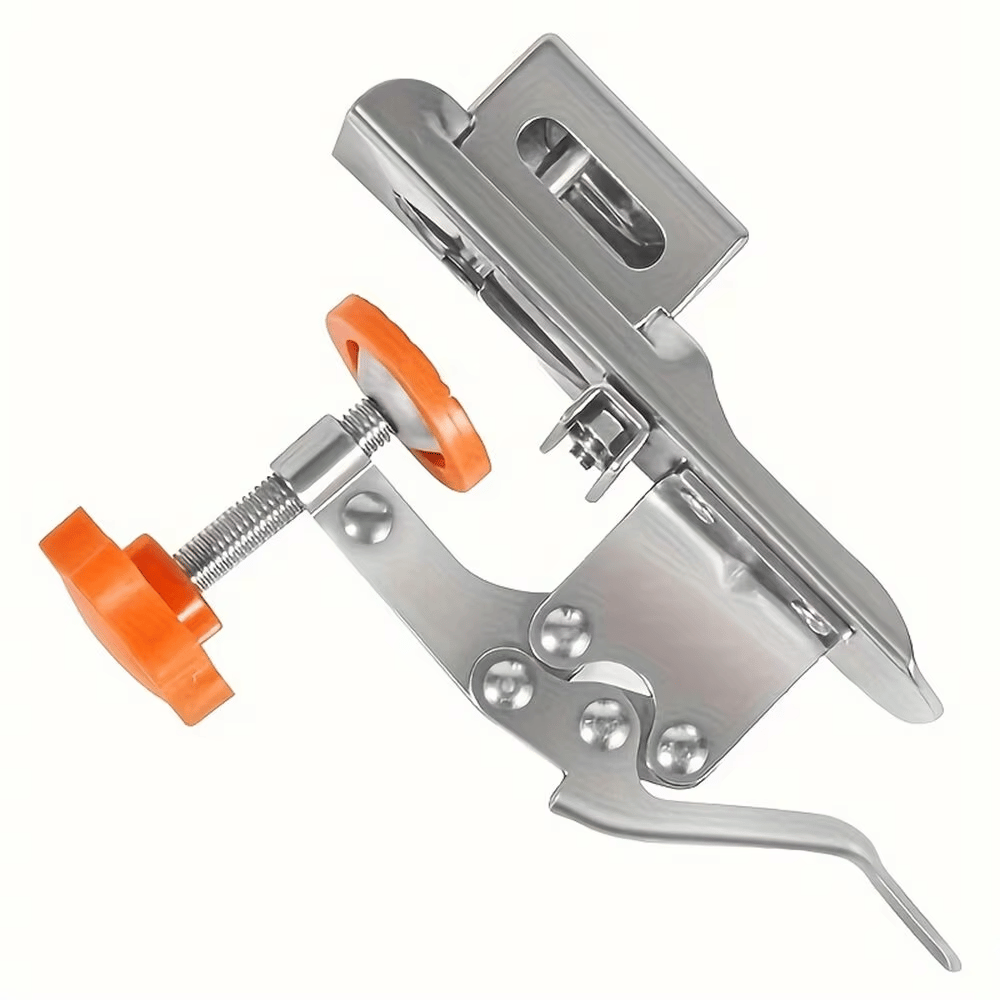

Optimization 3: Spiral Rubber Pad Quick Clamp

  • Adjustable Thickness for Wood Board Clamping

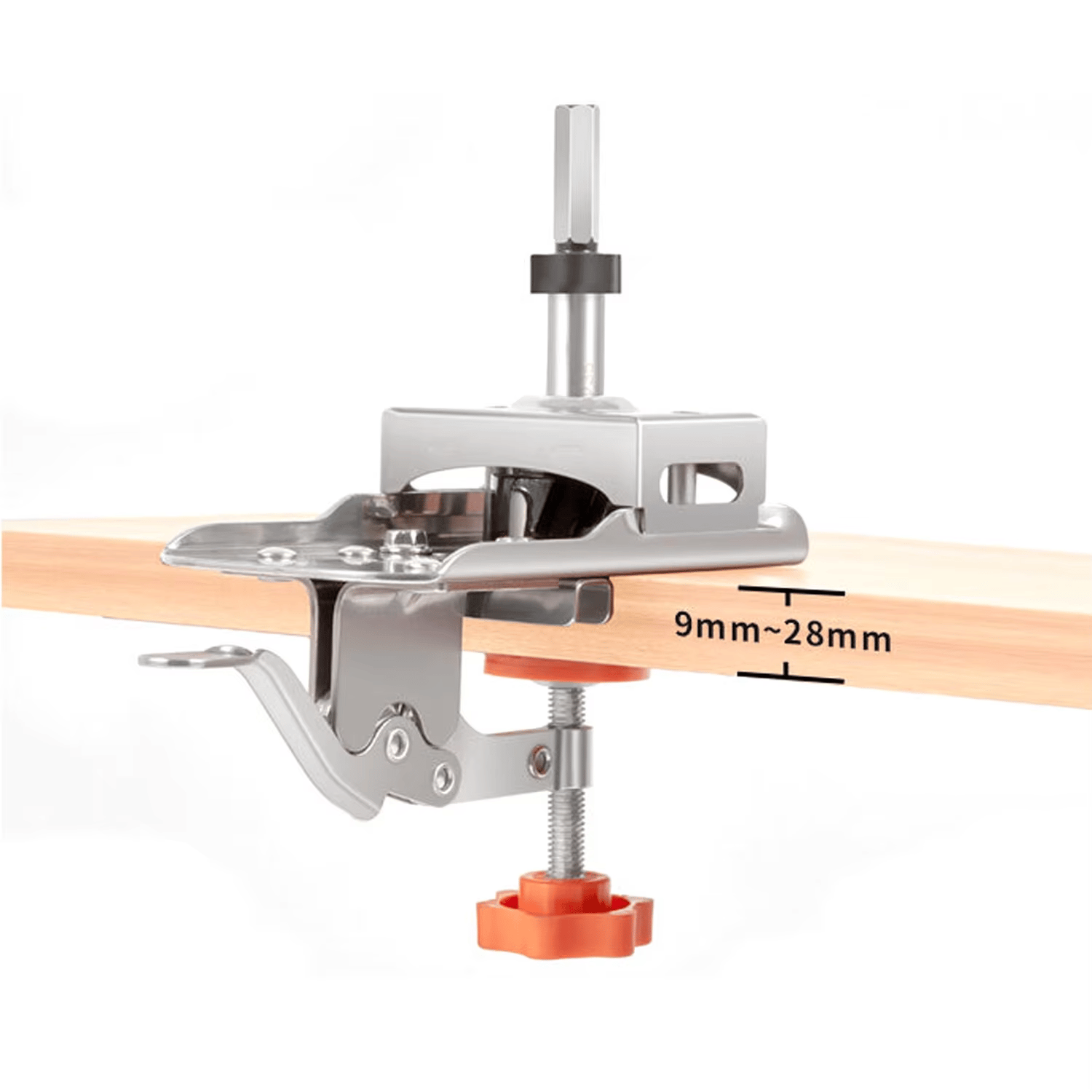

  • Rotating and locking the wooden board can accommodate 9-28mm thick boards.
  • Compared to the first generation, there’s no need for a wrench to adjust the quick clamping buckle, making it much more convenient to use.

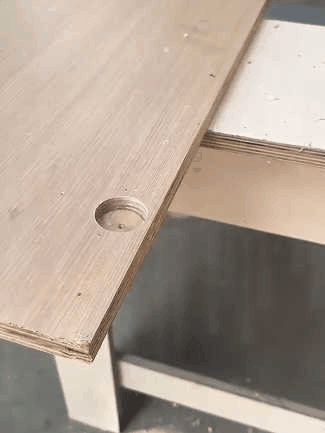

Optimization 4: Reaming Cup Hole Marking and Positioning

  • Easy Installation of Hinges
  • Added hinge hole position base markings on dual bearings.
  • After punching, the installation of cabinet door hinges can be completed quickly.

Specifications:
Material: High-quality Material
Optional Type: Type A (hole puncher with limiter), Type B (locator + unlimited drill bit set with limiter)

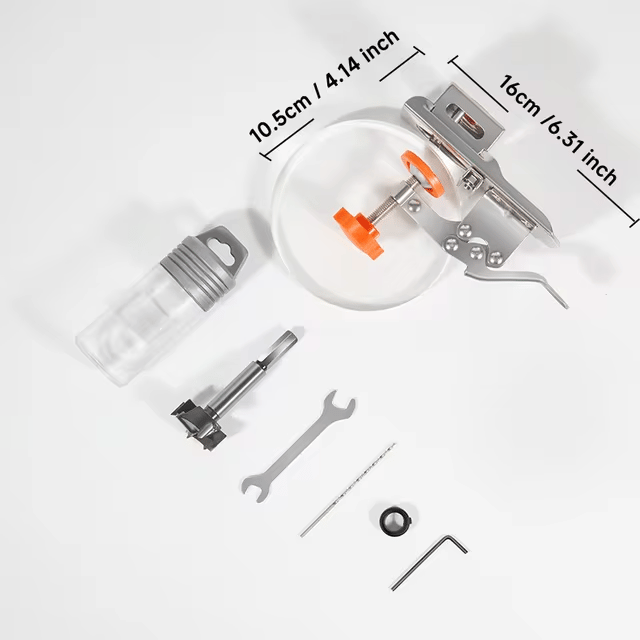

Package Included:

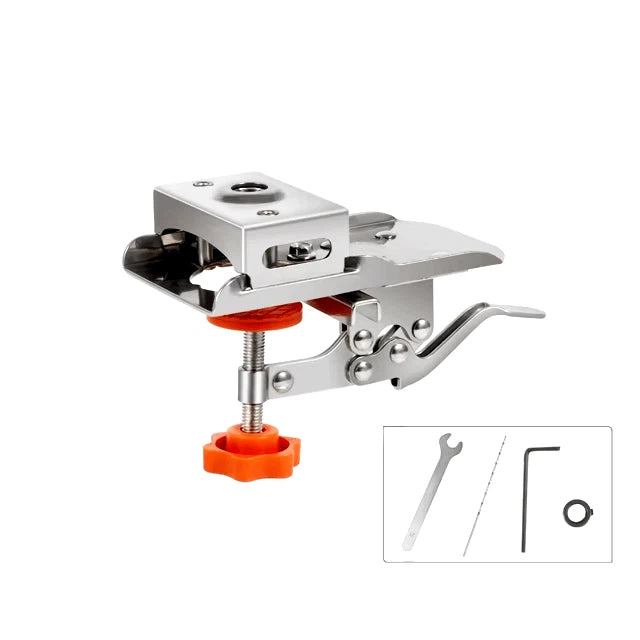

Type A:
1 x Hole Puncher
1 x Limiter
2 x Wrenches

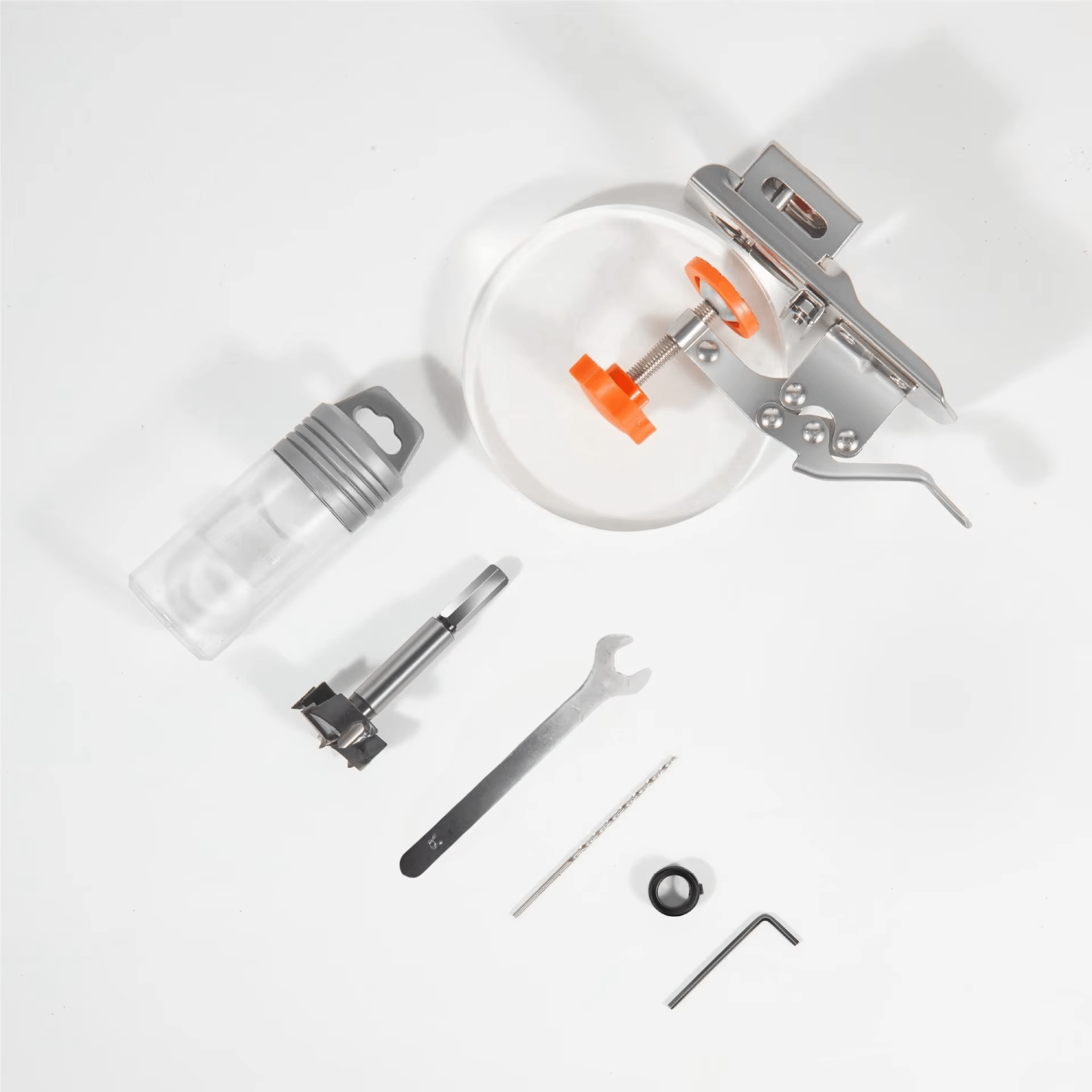

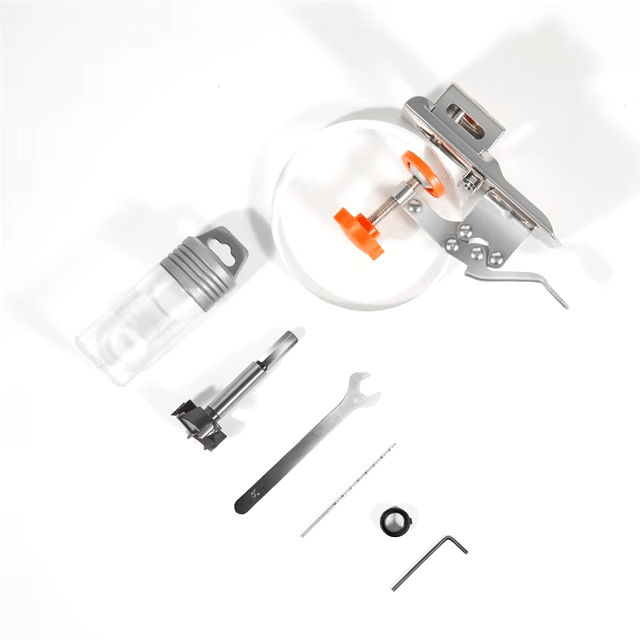

Type B:
1 x Hole Puncher
1 x Locator
2 x Wrenches
1 x 12mm Drill Bit
